Ichigo Ichie Electric Wheelchair #Comfort Move

Description

Ichigo Ichie Electric Wheelchair #Comfort Move

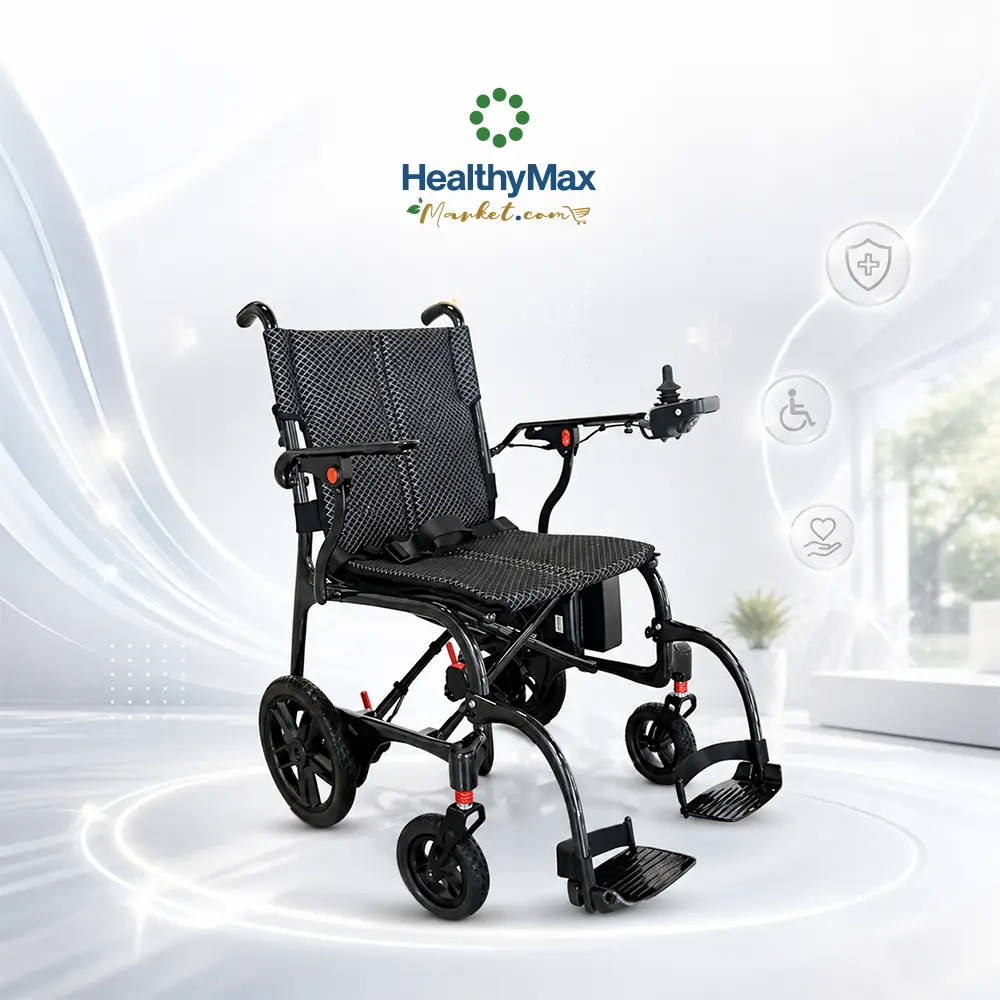

Electric Wheelchair, Model Comfort Move, Ichigo Ichie Brand

Product Details

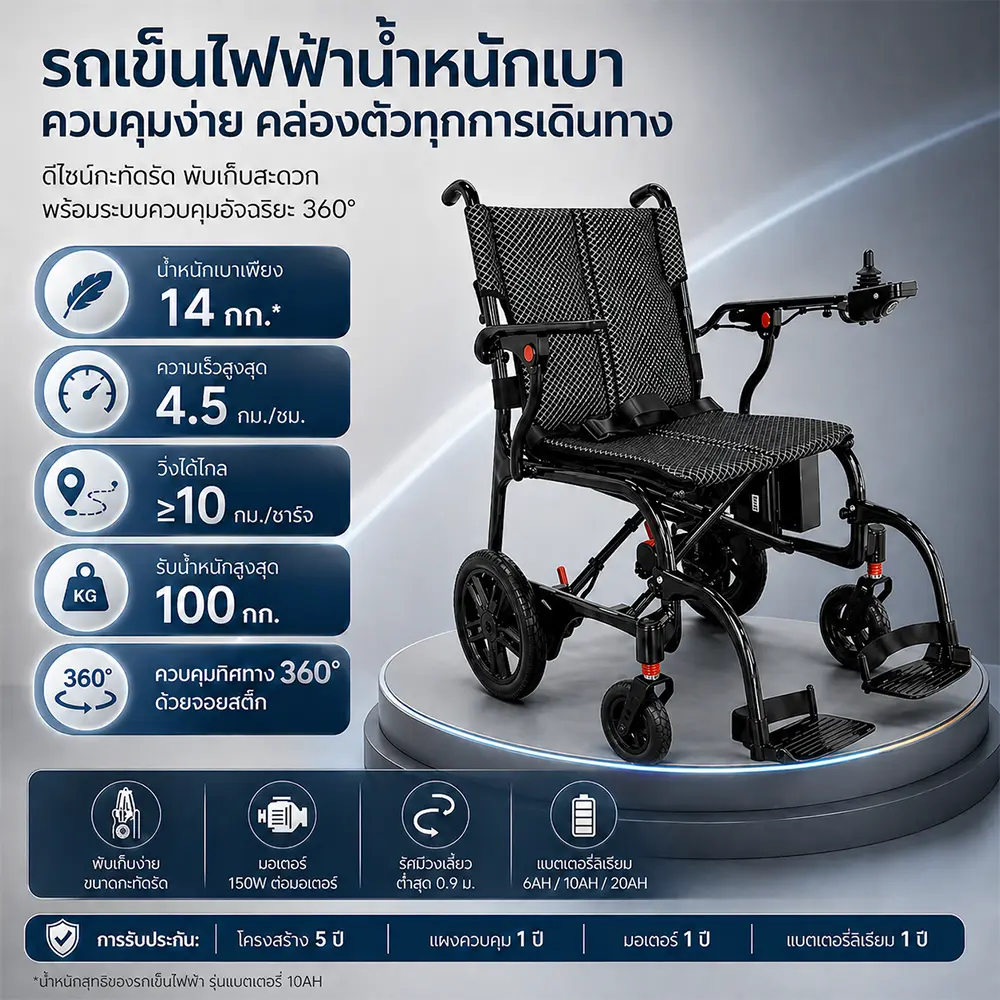

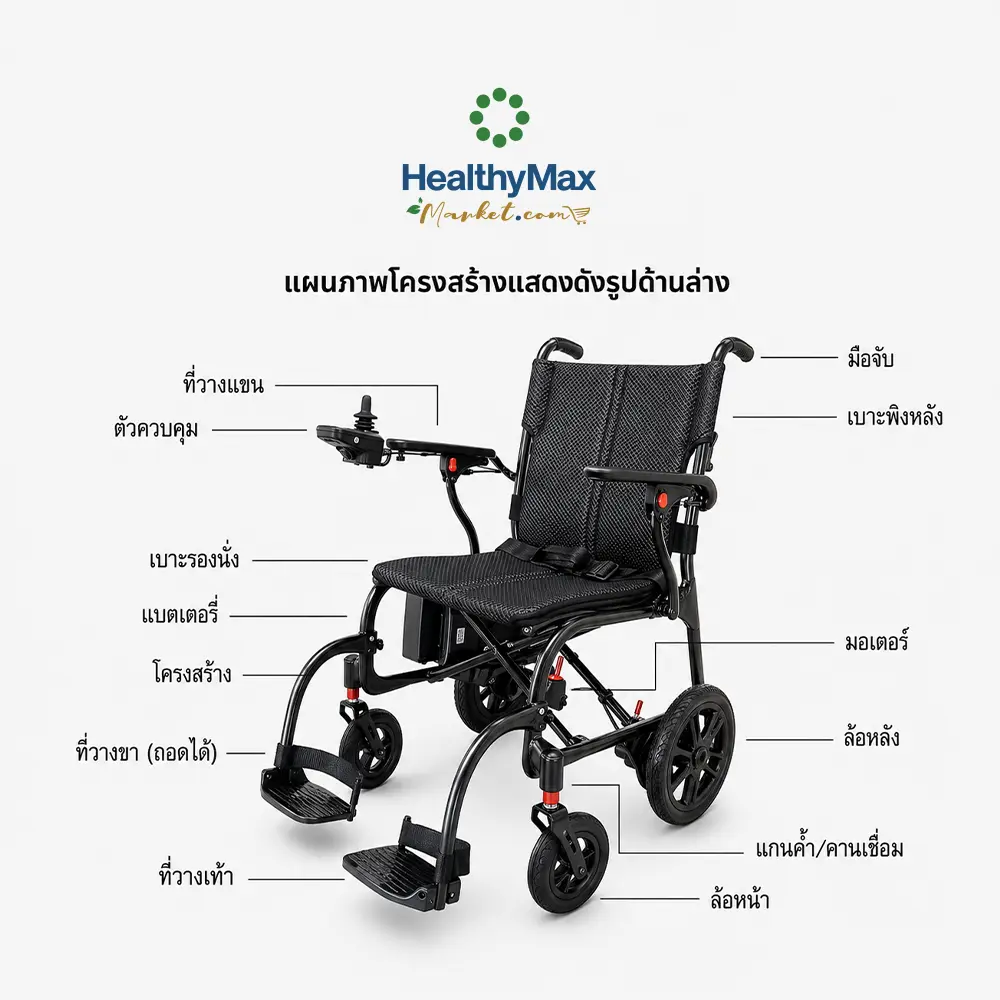

• Made with a carbon fiber frame, foldable, lightweight, and easy to assemble and disassemble. It can be folded and stored in a car trunk for convenient portability.
• Flip-up armrests and foldable footrests allow for easier transfer in and out of the wheelchair.

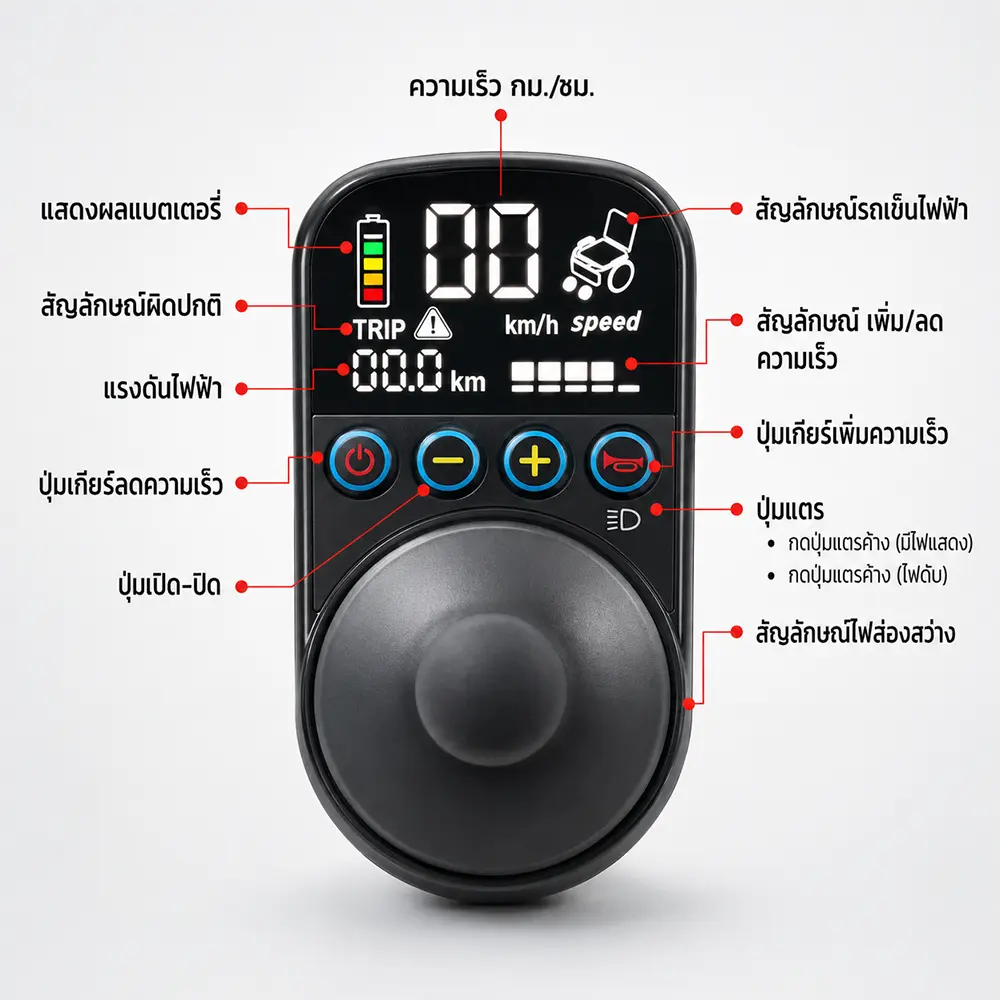

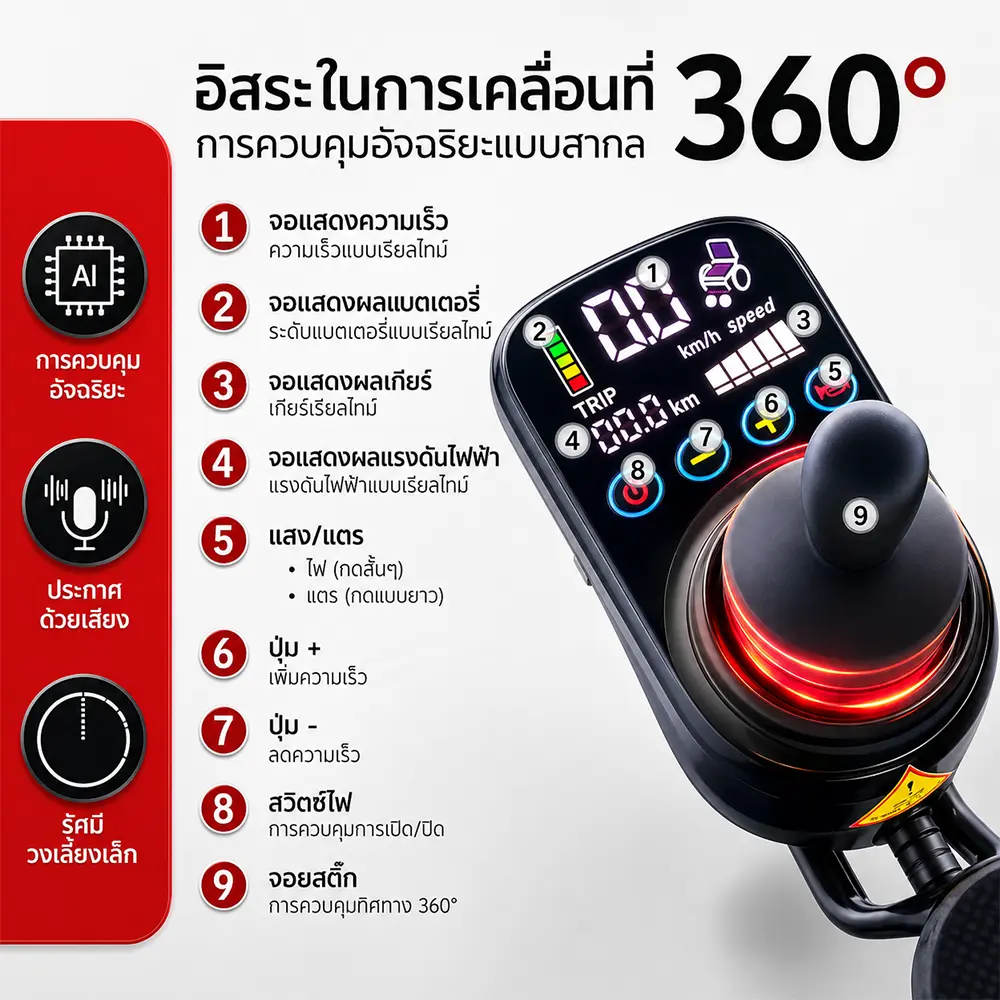

• Smart control panel with power button, battery level indicator, and multi-function joystick.

Power Switch: Press to turn on the wheelchair. After a “beep” sound, the device will start operating. Press and hold for 3 seconds to turn off the wheelchair. After a long “beep” sound, the device will shut down completely.

Control Lever: Push the control lever to control the direction and speed of the wheelchair.

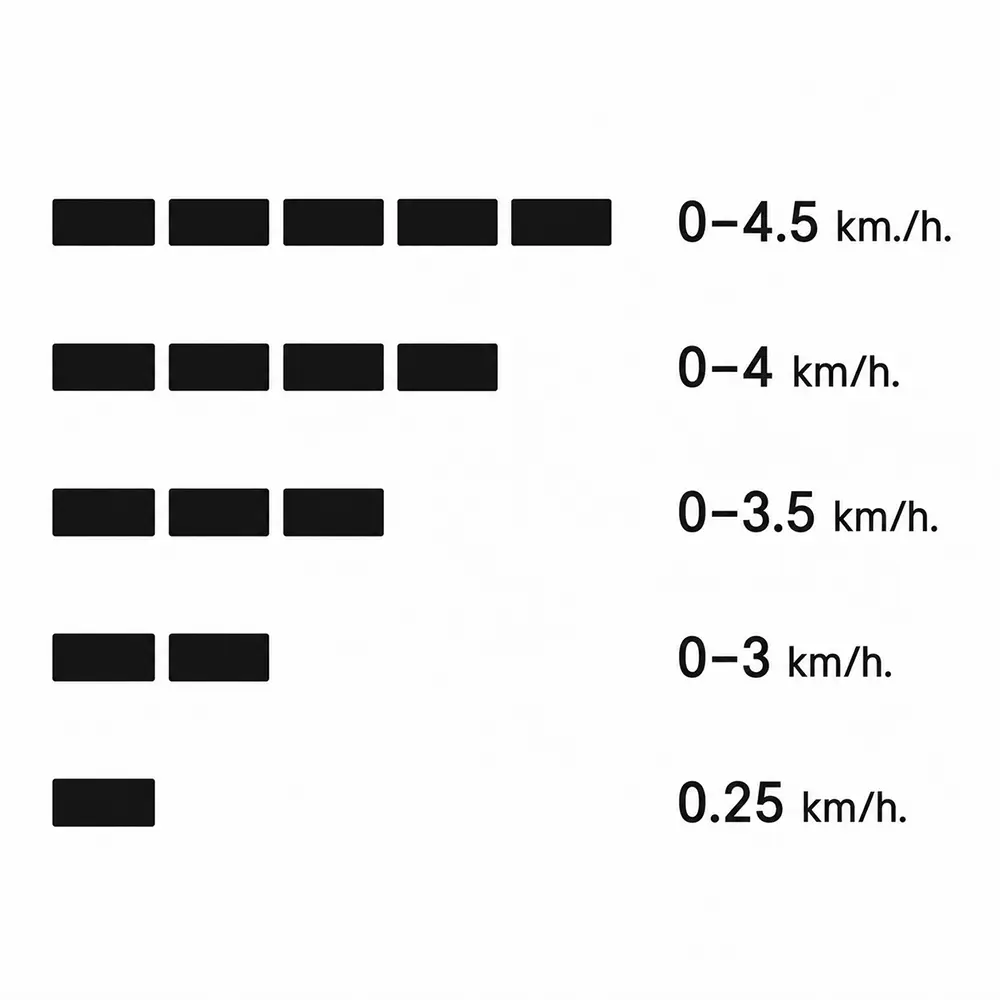

The wheelchair speed can be adjusted using the speed control button on the controller, with 5 speed levels available.

• Speed Limit Gear: When the speed limit gear is decreased, the maximum speed will be reduced. When it is increased, the maximum speed will increase.
• Horn: Press to sound the horn and release to stop the sound.





• 2 operating modes: CNC electric automatic drive mode and assisted drive mode.
• Energy-saving, high-efficiency motor.
• Lithium-ion battery accepted by TSA for air travel.
• Battery charging time: approx. 8–10 hours.
• Travel distance: approx. 10–15 km per full charge.
• Electric brake system with safety lock. This electric wheelchair uses an electric braking system and stops immediately when the control lever is released for safe operation.
• Shock-absorbing front wheels.
• Front wheel size: 6.5 inches. Rear wheel size: 12 inches. Designed to handle various surfaces and absorb impact effectively.
• Maximum user weight capacity: 100 kg.

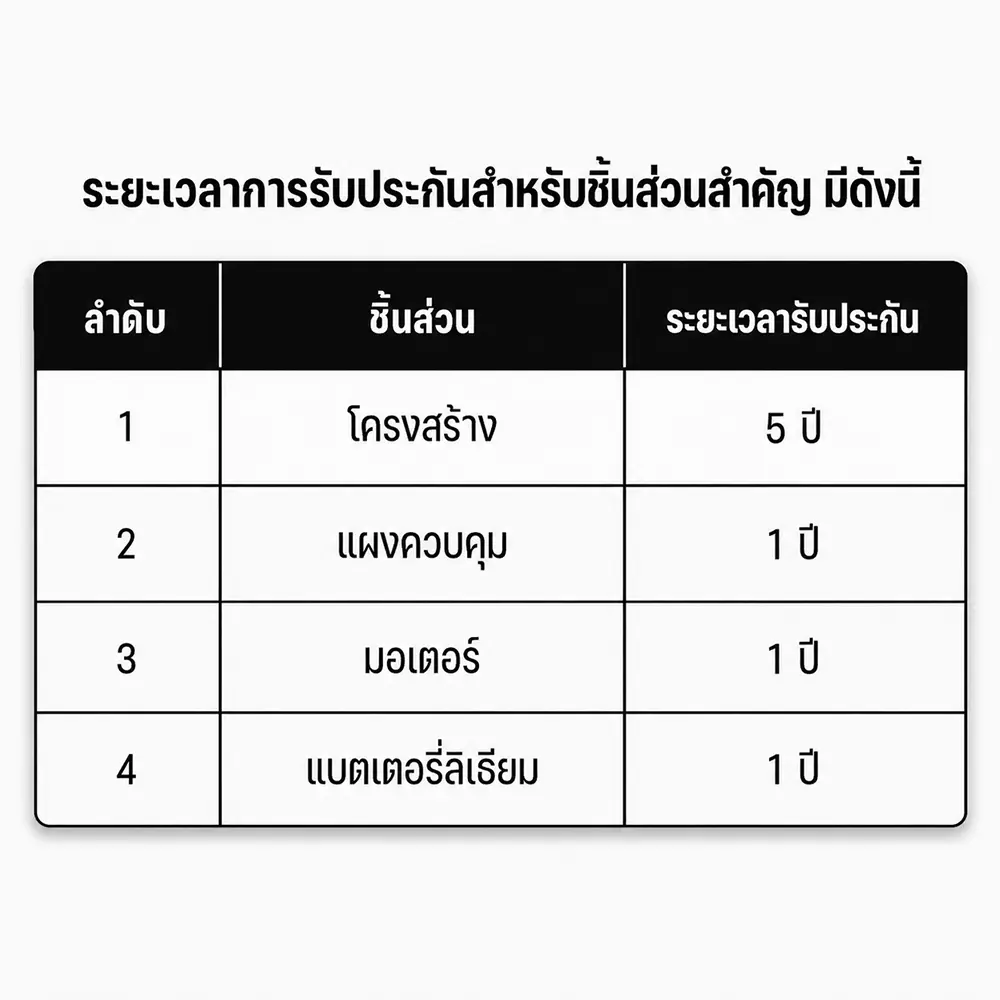

• Warranty:

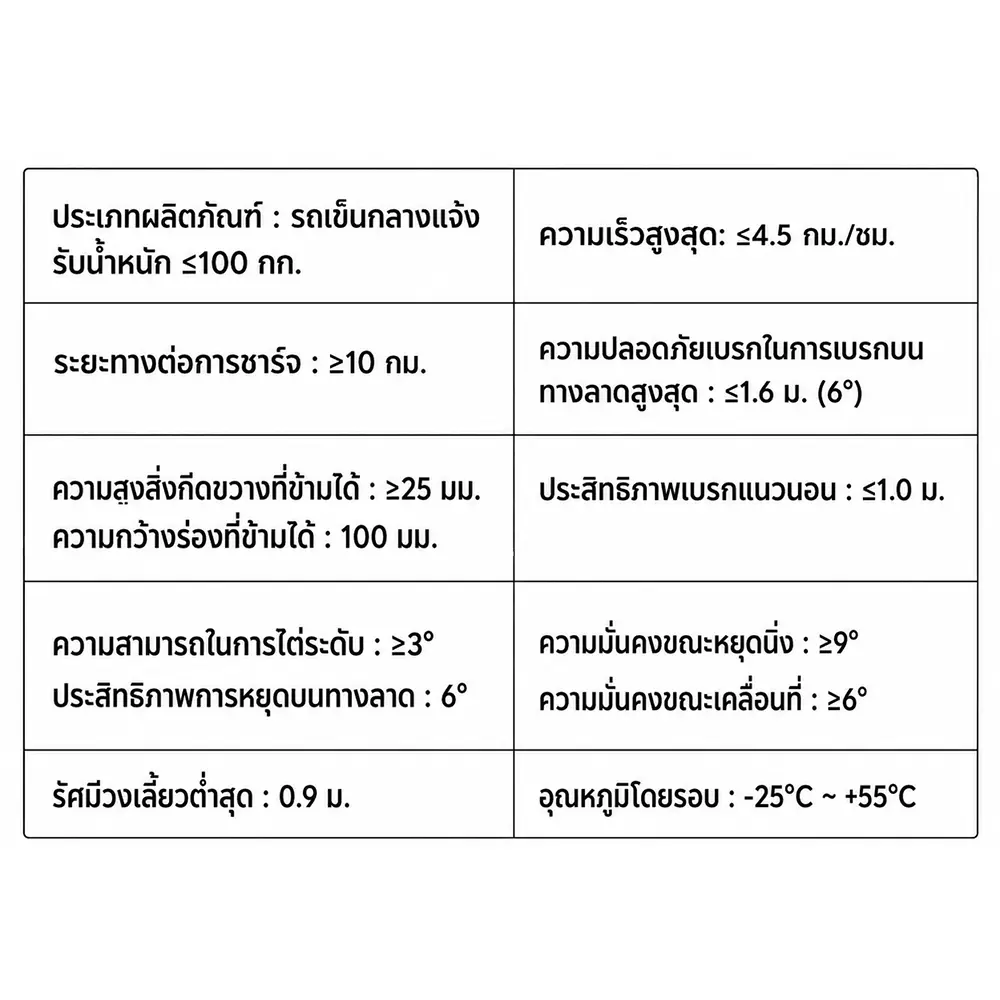

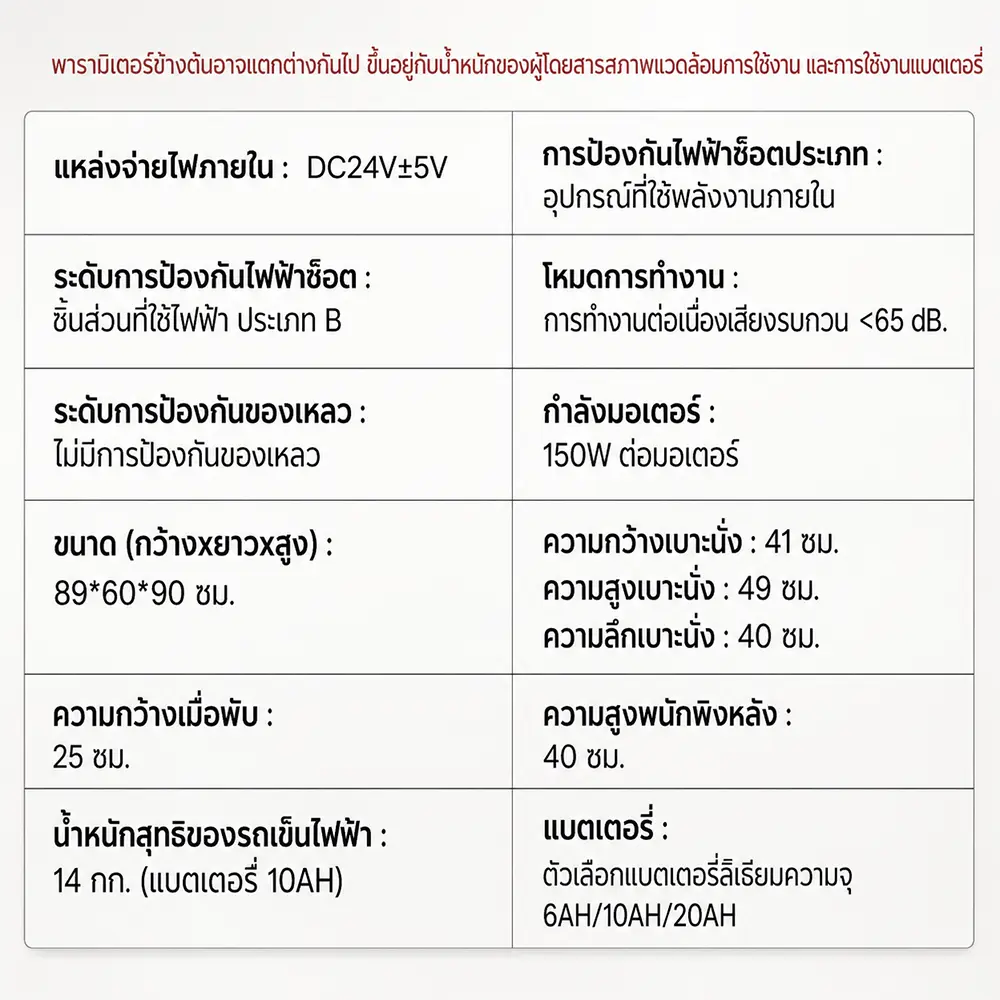

Technical Information



Recommendations

• Before using the electric wheelchair for the first time, please read the user manual carefully and follow the instructions provided to avoid product damage and injury caused by improper use.
• When the battery level reaches 10%, do not continue driving. Recharge immediately to prevent the wheelchair from stopping during use.
• If the wheelchair is not used for a long period, the battery will discharge and its performance may decrease. Therefore, the battery should be charged at least every 3 months. Before using it again, always fully charge the battery. Normally, the battery will be fully charged after approximately 8 hours. Irregular charging may affect battery lifespan. Even if the battery is fully charged before storage, long-term storage without use may still reduce battery performance.
• If the wheelchair will not be used for a long period, disconnect and remove the battery. Lack of power may create unacceptable risks. The wheelchair must always be connected to a suitable power source when required.

Maintenance

• For cleaning, prepare a damp cloth or anti-static cloth. Apply a small amount of medical alcohol to the cloth and wipe the surface of the charger and power cord. Place the parts in a well-ventilated area to dry. Once dry, they can be used normally.

Warnings

• The electric wheelchair and adapter together form an ME system. Do not use the electric wheelchair before assembly and inspection are fully completed.
• Do not get on or off the electric wheelchair while the control switch is turned on, or when the wheelchair is in manual mode without a device to secure it in place.
• If the wheelchair controller malfunctions or the brakes fail, release the control lever immediately and press the power switch to shut off the power supply.
• To prevent the wheelchair from losing control or moving by itself, do not place the wheelchair in manual mode on a slope.
• Avoid using accessories that may interfere with the control lever, as this may cause the electric wheelchair to move unexpectedly.
• Do not disassemble or modify the electric wheelchair.
• Avoid leaving the wheelchair in extremely hot or cold conditions for long periods, as this may damage the seat, backrest, non-upholstered parts, and battery.
• When moving an unused wheelchair up or down stairs, extra care must be taken. The wheelchair must be folded. Do not move it across stairs or escalators.
• Do not stand on the footrest, as this may cause the electric wheelchair to tip over. Do not lean on the armrests, as this may also cause the wheelchair to overturn.
• When the electric wheelchair is moving, reduce the speed to below 2 km/h before turning.
• When driving downhill, drive slowly using the lowest speed setting. When driving uphill, proceed carefully, lean slightly forward, and move at a low speed.
• While the wheelchair is moving, keep clothing and other items away from the wheels. Do not drag any objects behind the wheelchair while driving.
• Do not drive the wheelchair along the edges of streams, lakes, or the sea. Do not drive the wheelchair across rivers. Do not expose the wheelchair to open flames.
• Do not modify the seat specifications. Do not place additional cushions or pillows on the seat, as this may make the seat unstable.
• People with mental disorders, slow reactions, or difficulty operating the wheelchair should not use the electric wheelchair.

Product Registration Category : Medical Device / Registration No.: 68-2-3-2-0005761

Net Wheelchair Weight : Approx. 14 kg

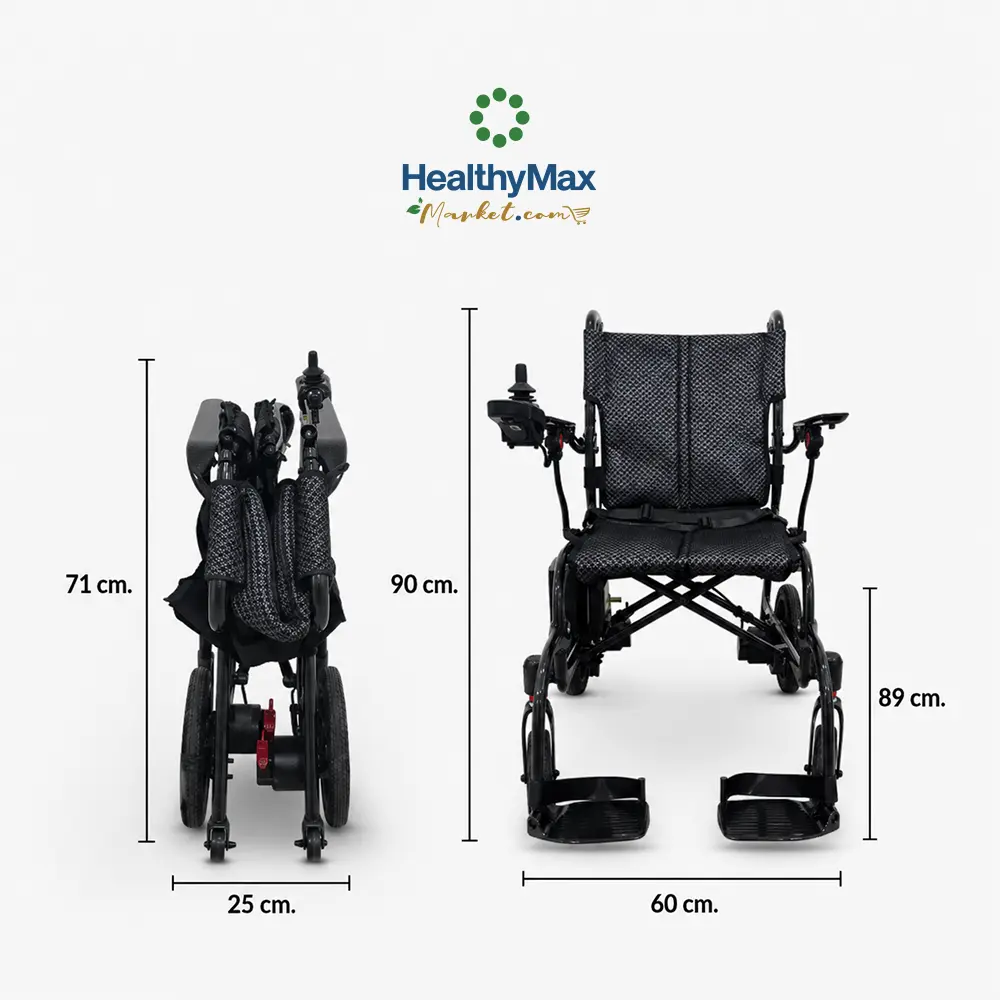

Unfolded Size : Approx. 60 x 89 x 90 cm. (W x L x H)

Folded Size : Approx. 25 x 89 x 71 cm. (W x L x H)
